American DJ Supply D6 Branch 6 Way DMX-512 Splitter and Amplifier Truss Mount 3-Pin to 3-Pin

D6 Branch

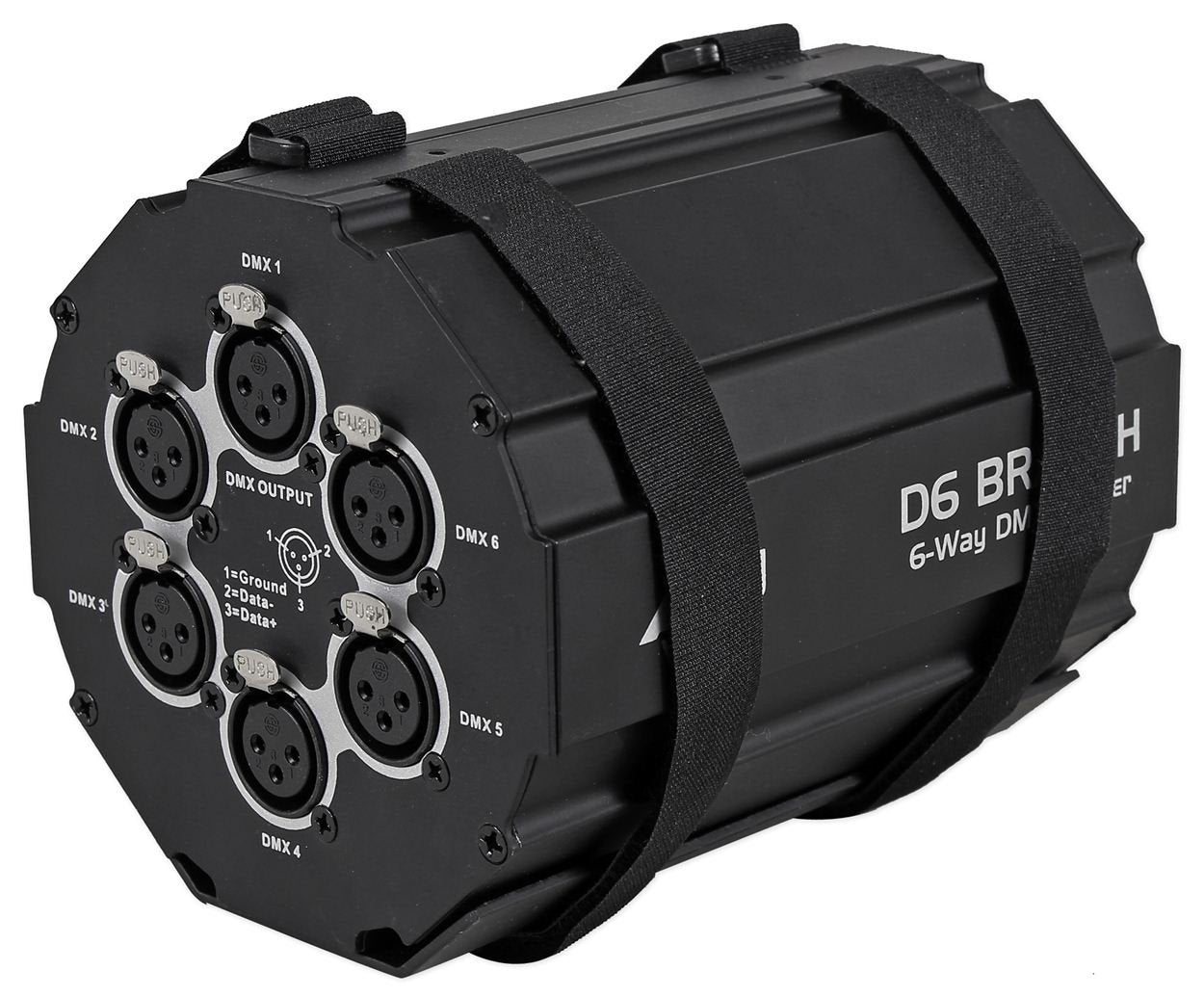

The D6 Branch is a 6-way DMX Splitter/amplifier. Each output is electrically and optically isolated from the input, and from every other output by optical couplers. It makes running DMX cable to lighting fixtures easier and more efficient. It features one DMX Input, 6 DMX Outputs and 1 DMX Thru. The D6 Branch also includes two Velcro straps and a clamp-mounting bracket. Front View
View larger Rear View
View larger On truss
View larger Specifications: 6-Way DMX Splitter & amplifier 1x DMX In, 6x DMX Out & 1 DMX Thru (all 3-pin XLR’s) Link with other D6 Branch Splitters Input & outputs are electrically and optically isolated from each other Includes 2x Velcro straps to securely attach to truss Clamp mount bracket included On/Off power switch Multi-voltage operation: AC 100-240V, 50/60Hz (IEC Socket) Dimensions (LxWxH): 4.75”x5”x6” / 118.5x122.5x153mm Weight: 2.5 lbs/ 1 kg.
