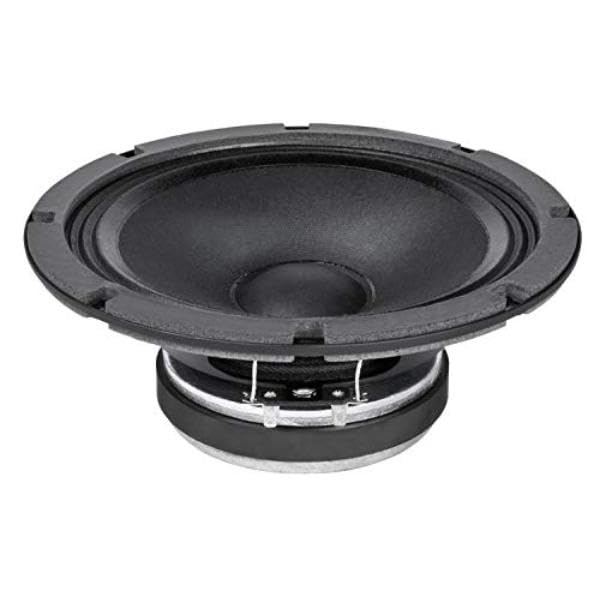

Faital Pro 8FE200-4 8-inch Professional Midbass Loudspeaker Low-Frequency Driver 4 Ohm 130 Watts Rms 260 Watts Max Audio Speaker

The FAITAL PRO 8FE200-4 is an 8-inch professional midbass loudspeaker. Low-frequency driver that offers a solid performance for various audio applications. This driver is designed to handle a significant amount of power and deliver a wide frequency response, making it suitable for professional audio systems where high-quality sound reproduction is essential. || NOMINAL SPECIFICATIONS || Nominal Diameter : 200 mm (8 in) || Overall Diameter : 209.2 mm (8.24 in) || Bolt Circle Diameter : 196.9 mm (7.75 in) || Baffle Cutout Diameter : 178 mm (7.01 in) || Depth : 89 mm (3.50 in) || Flange and Gasket Thickness : 8 mm (0.31 in) || Net Weight : 2.2 kg (4.7 lb) || Shipping Box (Single Carton Box) : 227 x 224 x 113 mm (8.9 x 8.8 x 4.4 in) || Shipping Weight : 3 kg (6.6 lb) || || TECHNICAL PARAMETERS || Nominal Impedance : 4 Ohm || Minimum Impedance : 3.6 Ohm || AES Power Handling (1) : 130 W || Maximum Power Handling (2) : 260 W || Sensitivity (1W/1m) : 95 dB || Frequency Range : 60÷5000 Hz || Voice Coil Diameter : 37 mm (1.46 in) || Winding Material : Al || Former Material : Kapton || || TECHNICAL PARAMETERS || Winding Depth : 11.9 mm (0.47 in) || Magnetic Gap Depth : 8 mm (0.31 in) || Flux Density : 1 T || Magnet : Ferrite Ring || Basket Material : Steel || Demodulation : No || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 0.6 dm^3 (0.021 ft^3) || Spider Profile : 1x constant height waves || || THIELE AND SMALL PARAMETERS || Fs : 80 Hz || Re : 3 Ohm || Qes : 0.47 || Qms : 8.7 || Qts : 0.45 || Vas : 15.8 dm^3 (0.56 ft^3) || Sd : 209 cm^2 (32.44 in^2) || Xmax (4) : 4.62 mm || Xdamage (5) : 10.4 mm || Mms : 15.3 g || Bl : 7 N/A || Le : 0.25 mH || Mmd : 11.9 g || Cms : 0.26 mm/N || Rms : 0.9 kg/s || Eta Zero : 1.67 % || EBP : 170 Hz || || Brand : FAITAL PRO || Model Number : 8FE200-4 | 8FE200 || PART NUMBER (P/N) Faston Terminals - 4 Ohm Version : 2004056 || UPC : 810130951390 || NOTES: : || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 : || (2) Maximum power is defined as 3dB greater than nominal power. : || (3) Treated Polycotton : || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) : || (5) Maximum excursion before permanent damage
