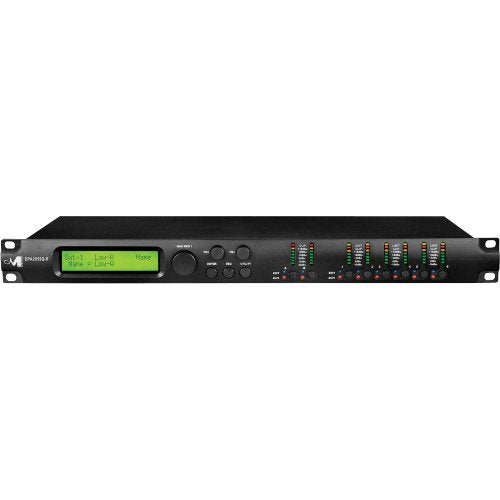

Marani DPA2655QR 2 In 6 Out Speaker Processor

It is a 2 input x 6 output Speaker Processor. The 2 input levels are displayed by rows of 6 level LEDs + 1 clip LED, The 6 output levels are displayed by rows of 5 level LEDs+ 1 clip LED + 1 Limiter LED. The unit has 2 analog inputs, a stereo digital input, and 6 analog outputs. Each input has 5 filters and each output has 5 parametric filters. Both input and output filters can be selected to be Bell, 1st/2nd Ord Shelvings with -3dB at cutting frequency., Symmetrical Shelving with variable Q, Hp/Lp with variable Q, 1st/2nd Ord. All Pass(90/180Deg.Phase rotation at the cutting frequency.), band-pass and notch. The outputs X-Over section has Butterworth, Lin/Reyl and Bessel filters up to 24dB/Oct or Custom selectable Hp/Lp with up to 24dB/Oct with the cascaded Kind Ord cells adjustable in Free and Q. RMS compressor with selectable Ratio up to 32:1 and adjustable Soft/Hard Knee. Output Peak Limiter with THR in V or dB for the Loudspeakers protection. The RMS compressor and Peak Limiter's THR can range up to -30dBu. Each input and output channels have delays up to 850ms, with steps of 22usec. Linking functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output level on parameter changes, when the unit is used as installation unit; this function can be excluded when the unit is used live and it is necessary to perform small changes to the set parameter on the fly. The Pc SW for the remote control is allowing to connect in net up to 32 units and is allowing to show the phase of the filter setting and to adjust graphically the RMS compressor and the Peak limiter.
