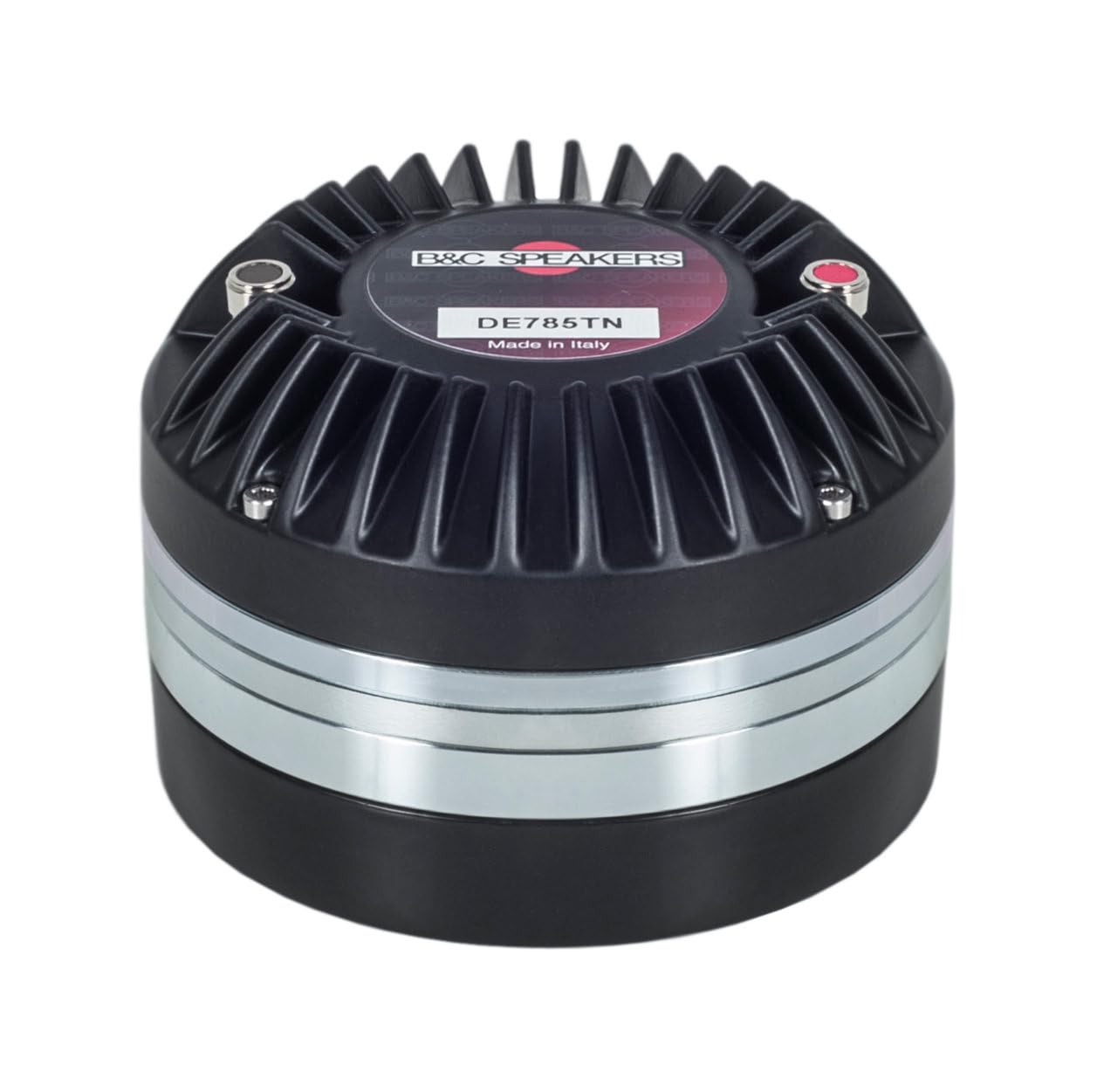

B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8

B&C Speakers DRV785TN8 HF Driver Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV785TN-8 || GENERAL || Brand : B&C Speakers || Model Number : DRV785TN8 | DRV785TN-8 || UPC : 8050593406613 | 718852125023 || FEATURES || Continuous Power Handling: 220 W || Voice Coil Diameter: 75 mm (3.0 in) aluminum || Frequency Response: 500 - 18,000 Hz || Sensitivity: 107.5 dB || Diaphragm Material: Titanium || Magnet Material: Neodymium with shorting copper cap || || SPECIFICATIONS || Throat Diameter : 50 mm (2 in) || Minimum Impedance : 8.3 ? || Continuous Power Handling : 220 W || Frequency Range : 0.5 - 18 kHz || Voice Coil Diameter : 75 mm (3 in) || Inductance : 0.17 mH || Magnet Material : Neodymium Ring || Nominal Impedance : 8 ? || Nominal Power Handling : 110 W || Sensitivity : 107.5 dB || Recommended Crossover : 1 kHz || Winding Material : Aluminium || Diaphragm Material : Titanium || Flux Density : 1.95 T || || MOUNTING INFO || Overall Diameter: 112 mm (4.41 in) || Depth: 77 mm (3.03 in) || Net Weight: 1.75 kg (3.86 lb) || Shipping Box : 135x135x93 mm (5.31x5.31x3.66 in) || || The B&C DRV785TN-8 is a high-frequency driver designed for professional audio applications, particularly suitable for compact line array loudspeakers. This driver is notable for its 220W continuous power handling capability and an impressive frequency response range of 500 - 18,000 Hz. The 75 mm (3 in) aluminum voice coil and titanium diaphragm are central to its high-performance characteristics, offering exceptional sound clarity and efficiency. || || A key aspect of the DRV785TN-8 is its sensitivity, rated at 107.5 dB, which ensures clear and loud sound output. The driver's design incorporates a 2" horn throat diameter, optimized for effective sound projection. Additionally, the neodymium magnet assembly with a shorting copper cap contributes to its superior sound quality and efficiency.
