"FEATURES || * Brand : FAITALPRO || * Model Number : 10FH520-8 || 10FH520 || * PART NUMBER (P/N) || Push Terminals - 8 Ohm Version : 2503972 || A 10-inch, neodymium magnet with an aluminum demodulation ring for low distortion and high efficiency || A 3-inch, aluminum voice coil with a glass fiber former for high power handling and durability || A triple roll, treated polycotton cone surround for smooth response and extended excursion || "

"NOMINAL SPECIFICATIONS || Nominal Diameter : 250 mm (10 in) || Overall Diameter : 261 mm (10.28 in) || Bolt Circle Diameter : 246 mm (9.69 in) || Baffle Cutout Diameter : 232 mm (9.13 in) || Depth : 141.3 mm (5.56 in) || Flange and Gasket Thickness : 12.5 mm (0.49 in) || Net Weight : 3.7 kg (8.2 lb) || Shipping Box (Single Carton Box) : 294 x 290 x 203 mm | (11.6 x 11.4 x 8.0 in) || "" Shipping Weight : 4.3 kg (9.5 lb) || "

"TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6 Ohm || AES Power Handling (1) : 600 W || Maximum Power Handling (2) : 1200 W || Sensitivity (1W/1m) : 97 dB || Frequency Range : 60÷4000 Hz || Voice Coil Diameter : 77 mm (3 in) || Winding Material : Al || Former Material : Glass Fiber || Winding Depth : 18.5 mm (0.71 in) || "

"TECHNICAL PARAMETERS || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.1 T || Magnet : Neodymium Slug || Basket Material : Aluminum || Demodulation : Aluminum Ring || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 1.7 dm^3 (0.060 ft^3) || Spider Profile : 1x variable height waves || "

"THIELE AND SMALL PARAMETERS Fs : 60 Hz || Re : 5.1 Ohm || Qes : 0.3 || Qms : 11.1 || Qts : 0.29 || Vas : 23.5 dm^3 (0.83 ft^3) || Sd : 347 cm^2 (53.79 in^2) || Xmax (4) : 7.25 mm || Xdamage (5) : 19.5 mm || Mms : 50.3 g || Bl : 18 N/A || Le : 0.9 mH || Mmd : 43.0 g || Cms : 0.14 mm/N || Rms : 1.7 kg/s || Eta Zero : 1.65 % || EBP : 200 Hz ||

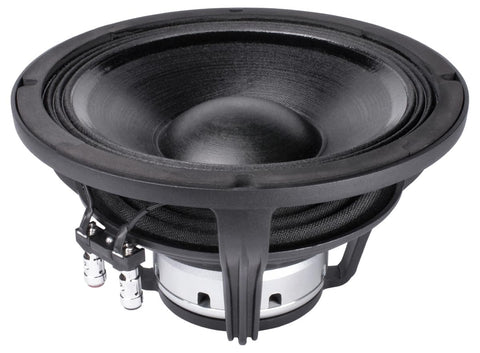

FAITAL 10 In SUPER MID BASS
