HIGHLIGHTS : * 98 dB SPL 1W / 1m average sensitivity || * 75 mm (3 in) Interleaved Sandwich Voice coil (ISV) || * 450 W AES power handling || * Weather protected cone and plates for outdoor usage || * Excellent transient response || * Improved heat dissipation via unique basket design || * Ideal for compact two way and multiway systems ||

* Overall diameter: 260 mm (10,24 in) || * Number of mounting holes & bolt: 8 || * Mounting holes diameter: 7,15 mm (0,28 in) || * Bolt circle diameter: 244,5 mm (9,63 in) || * Front mount baffle cutout Diameter: 232 mm (9,13 in) || * Rear mount baffle cutout Diameter: 232 mm (9,13 in) || * Total depth: 127 mm (5 in) || * Flange & gasket thickness: 14,5 mm (0,57 in) || * Flange & gasket thickness: 14,5 mm (0,57 in) || * Net weight: 7,35 kg (16,23 lb) ||

The 10MB600 mid-bass transducer represents a development of the 10M600 midrange, combining excellent linearity with high efficiency and high power handling capabilities. The 10MB600 is primarily intended for use as a midbass driver in extremely compact 2-way reflex enclosures between 10 and 40 lt. Its curvilinear paper cone is formed using a special high strength wood pulp, designed to achieve the best possible rigidity and stiffness.

The 75 mm state-of-the-art voice coil is similar to those fitted to our top-of-the-range 18" and 15" models but it is wound with aluminum wire. The coil also employs our Interleaved Sandwich Voice coil (ISV) technology. A high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil, resulting in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.

The voice coil cooling is achieved using airways between the chassis back plate and the face plate of the magnet which allow heated air from the voice coil and gap to be channeled away and dissipated by the chassis basket.

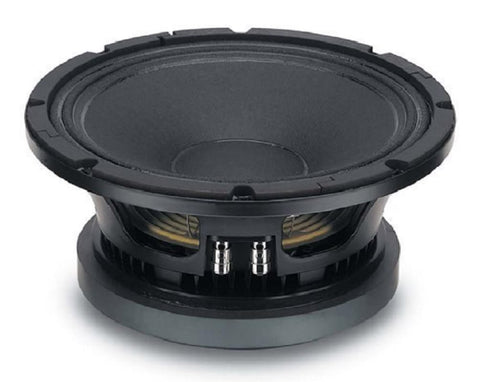

High Power 10-in Midbass Driver 8 Ohms
