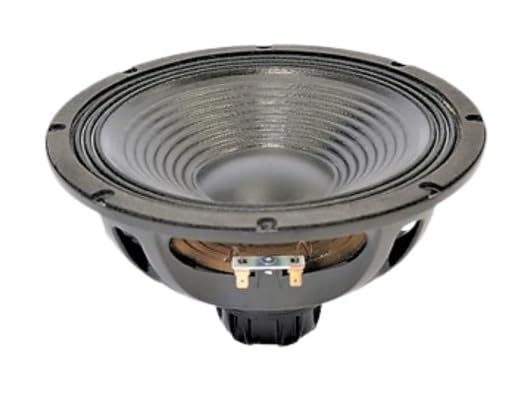

10-in Woofer for high quality low distortion applications

HIGHLIGHT : Tetracoil Technology || 97 dB SPL 1W / 1m average sensitivity || 51 mm (2 in) double layer voice coil || 350 W AES power handling || Extremely balanced BL shape for maximum SPL || Optimized thermal conductivity || Maximum linearity and inductance symmetry for extended mid-band clarity || Ideal for two-ways and line array applications ||

"SPECIFICATIONS || Nominal Diameter :: 260 mm (10.0 in) || Nominal Impedance :: 8 ? || Minimum Impedance :: 5.7 ? || Nominal Power Handling1 :: 350 W || Continuous Power Handling2 :: 700 W || Sensitivity3 :: 97.0 dB || Frequency Range :: 50 - 3000 Hz || Voice Coil Diameter :: 51 mm (2.0 in) || Winding Material :: aluminum || Winding Depth :: 19.0 mm (0.75 in) || Magnetic Gap Depth :: 8.5 mm (0.33 in) || "

MOUNTING AND SHIPPING INFO || Overall Diameter : 260 mm (10.24 in) || Bolt Circle Diameter : 245 mm (9.65 in) || Baffle Cutout Diameter : 233.0 mm (9.17 in) || Depth : 141 mm (5.55 in) || Flange and Gasket Thickness : 10 mm (0.39 in) || Net Weight : 1.9 kg (4.19 lb) || Shipping Weight : 2.3 kg (5.07 lb) ||

The 10NTLS2000 represents the latest 18sound technology for high quality, low distortion applications. The Tetracoil technology maximize benefits in terms of thermal dissipation and Bl symmetry, making the 10NTLS2000 the perfect component both as a woofer and a midbass.

Dual gap motors linearize inductance and the perfect balance we reached between the motor and the ultra linear suspension allows both very high excursion and extreme precision in the mid band with the lowest intermodulation distortion in the professional market. This features, together with its extreme low weight make the 10NTLS2000 the perfect component for highest quality line arrays and two way systems, thanks also to its 700 watts power handling capabilities.
