NOMINAL SPECIFICATIONS || Nominal Diameter : 380 mm (15 in) || Overall Diameter : 393 mm (15.47 in) || Bolt Circle Diameter : 374 mm (14.72 in) || Baffle Cutout Diameter : 356 mm (14.02 in) || Depth : 181.3 mm (7.14 in) || Flange and Gasket Thickness : 13.7 mm (0.54 in) || Net Weight : 6.2 kg (13.6 lb) || Shipping Box (Single Carton Box) : 430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) || Shipping Weight : 7.2 kg (15.9 lb) ||

TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.9 Ohm || AES Power Handling (1) : 700 W || Maximum Power Handling (2) : 1400 W || Sensitivity (1W/1m) : 98 dB || Frequency Range : 40÷4000 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Al || Former Material : Glass Fiber ||

TECHNICAL PARAMETERS || Winding Depth : 22 mm (0.87 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.3 T || Magnet : Neodymium Slug || Basket Material : Aluminum || Demodulation : No || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 3.9 dm^3 (0.138 ft^3) || Spider Profile : 2x non-adjacent symmetrical constant height waves ||

THIELE AND SMALL PARAMETERS || Fs : 40 Hz || Re : 5.5 Ohm || Qes : 0.28 || Qms : 10.2 || Qts : 0.27 || Vas : 126.6 dm^3 (4.47 ft^3) || Sd : 822 cm^2 (127.41 in^2) || Xmax (4) : 9.00 mm || Xdamage (5) : 16 mm || Mms : 118.0 g || Bl : 24.2 N/A || Le : 1.2 mH || Mmd : 91.4 g || Cms : 0.13 mm/N || Rms : 2.9 kg/s || Eta Zero : 2.82 % || EBP : 143 Hz ||

Brand : FAITAL PRO || Model Number : 15HP1020-8 | 15HP1020 || UPC : 810130951222 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 3803941 || NOTES || PATENTED IT 2006/000327 || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage

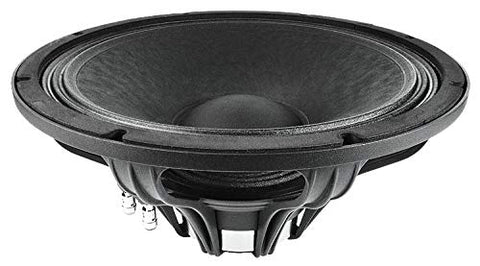

FAITAL 15 In SUPER WOOFER
