NOMINAL SPECIFICATIONS || Nominal Diameter : 380 mm (15 in) || Overall Diameter : 393 mm (15.47 in) || Bolt Circle Diameter : 374 mm (14.72 in) || Baffle Cutout Diameter : 354 mm (13.94 in) || Depth : 194.3 mm (7.65 in) || Flange and Gasket Thickness : 13.7 mm (0.54 in) || Net Weight : 7.1 kg (15.7 lb) || Shipping Box (Single Carton Box) : 430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) || Shipping Weight : 8.4 kg (18.5 lb) ||

TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.4 Ohm || AES Power Handling (1) : 1000 W || Maximum Power Handling (2) : 2000 W || Sensitivity (1W/1m) : 97 dB || Frequency Range : 40÷2000 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Cu || Former Material : Glass Fiber ||

TECHNICAL PARAMETERS || Winding Depth : 28.9 mm (1.14 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.22 T || Magnet : Neodymium Ring || Basket Material : Aluminum || Demodulation : Aluminum Ring || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 4.1 dm^3 (0.145 ft^3) || Spider Profile : 2x non-adjacent symmetrical variable height waves ||

THIELE AND SMALL PARAMETERS || Fs : 40 Hz || Re : 5 Ohm || Qes : 0.32 || Qms : 11.4 || Qts : 0.31 || Vas : 100.3 dm^3 (3.54 ft^3) || Sd : 842 cm^2 (130.51 in^2) || Xmax (4) : 12.45 mm || Xdamage (5) : 21 mm || Mms : 156.3 g || Bl : 24.8 N/A || Le : 1.32 mH || Mmd : 128.7 g || Cms : 0.10 mm/N || Rms : 3.4 kg/s || Eta Zero : 1.95 % || EBP : 125 Hz ||

Brand : FAITAL PRO || Model Number : 15HP1060-8 | 15HP1060 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 03804052 || UPC : 810130951246 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage ||

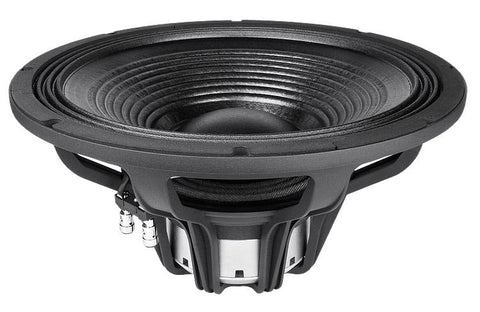

FAITAL 15 In WOOFER
