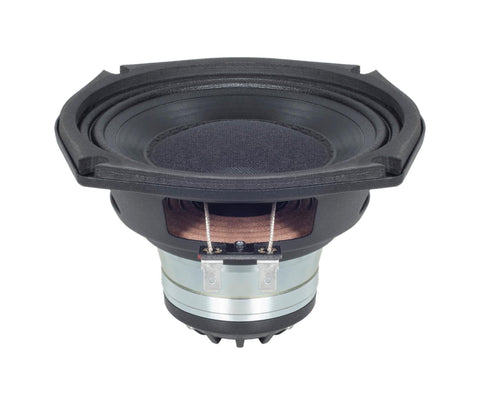

"GENERAL || Brand : B&C Speakers || Model Number : 5CXN36-8 | ALT005CXN368/16 || UPC : 8050593401304 | 718852124972 || Nominal Diameter : 127 mm (5 in) || Frequency Range : 94 - 18000 Hz || Dispersion Angle : 70 ° nominal coverage || Nominal Impedance : 8 ohm LF unit, 16 ohm HF unit || 200 W continuous program power capacity || 89 dB sensitivity || Aluminium demodulating ring for very low distortion ||

"SPECIFICATIONS LF UNIT || Sensitivity : 89 dB || Continuous Power Handling : 200 W || Winding Material : Copper || Nominal Diameter : 127 mm (5 in) || Minimum Impedance : 6.5 ? || Winding Depth : 11 mm (0.43 in) || Woofer Cone Treatment : WP Waterproof Front Side || Nominal Power Handling : 100 W || Voice Coil Diameter : 34 mm (1.3 in) || Flux Density : 0.74 T || Nominal Impedance : 8 ? || Former Material : Glass Fibre || Magnetic Gap Depth : 6 mm (0.24 in) ||

"SPECIFICATIONS HF UNIT || Sensitivity : 101 dB || Continuous Power Handling : 50 W || Winding Material : Aluminium || Nominal Diameter : 127 mm (5 in) || Minimum Impedance : 10 ? || Inductance : 0.14 mH || Magnet Material : Neodymium Ring || Nominal Power Handling : 25 W || Voice Coil Diameter : 36 mm (1.4 in) || Flux Density : 1.65 T || Nominal Impedance : 8 ? || Recommended Crossover : 2 kHz || Diaphragm Material : HT Polymer ||

"DESIGN || Magnet Material : Neodymium Ring || Woofer Cone Treatment : WP Waterproof Front Side || PARAMETERS || Fs : 95 Hz || Qes : 0.97 || Qts : 0.9 || Sd : 95 cm² (14.73 sq²) || Xvar : 5.5 mm || Bl : 5.42 Tm || EBP : 98 Hz || Re : 5.8 ? || Qms : 13.5 || Vas : 4.4 dm³ (0.16 ft³) || ?0 : 0.36 % || Mms : 8.3 g || Le : 0.89 mH ||

"MOUNTING AND SHIPPING INFO || Overall Diameter : 150 mm (5.91 in) || Baffle Cutout Diameter : 123 mm (4.84 in) || Flange and Gasket Thickness : 7 mm (0.28 in) || Shipping Units : 1 pcs || Shipping Box : 255x255x150 mm (10.04x10.04x5.91 in) || Bolt Circle Diameter : 138 mm (5.43 in) || Depth : 87 mm (3.43 in) || Net Weight : 0.65 kg (1.43 lb) || Shipping Weight : 1.13 kg (2.49 lb)

B&C 5 In ND COAX
