"HIGHLIGHT : * 92,5 dB SPL 1W / 1m average sensitivity || * 45 mm (1,77 in) aluminum voice coil || * 200 W AES power handling || * Neodymium motor assembly || * Weather protected cone || * Improved heat dissipation via unique basket design || * Ideal for compact two way and multiway systems || "

"SPECIFICATIONS || Nominal Diameter : 152 mm ( in) || Nominal Impedance : 8 ? || Minimum Impedance : 6.1 ? || Nominal Power Handling1 : 200 W || Continuous Power Handling2 : 260 W || Sensitivity3 : 92.5 dB || Frequency Range : 63 - 5500 Hz || Voice Coil Diameter : 44 mm (1.75 in) || Winding Material : aluminum || "

"MOUNTING AND SHIPPING INFO || Overall Diameter : 162 mm (6.38 in) || Bolt Circle Diameter : 170 mm (6.69 in) || Baffle Cutout Diameter : 148.0 mm (5.83 in) || Depth : 73 mm (2.87 in) || Flange and Gasket Thickness : 9 mm (0.35 in) || Net Weight : 1.25 kg (2.76 lb) || Shipping Weight : 1.45 kg (3.2 lb) || Shipping Box : 185x170x85 mm (7.28x6.69x3.35 in) || "

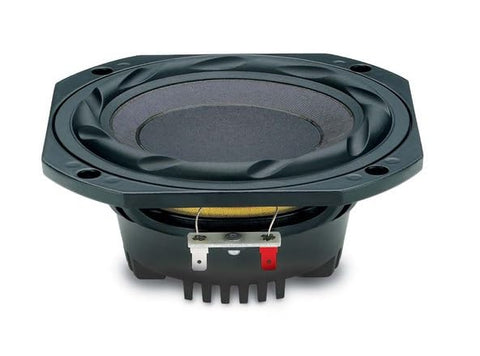

"The 6ND430 is a 6 inch neodymium woofer designed for low frequency reproduction in 2-way systems or multiway systems where both low weight and high intelligibility are required. The speaker has been specifically designed for compact reflex enclosures where high quality low-bass and mid frequencies are required such as studio monitoring applications. It is also currently used in line array or multiway systems with excellent results. || "

"The extremely powerful external neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. The levels of force factor and power handling are, as a consequence, at a top professional level with an optimum power to weight ratio. A consistent heat transfer is guaranteed by the encapsulation of the magnetic structure in the interior of the basket, offering a large contact space between the back plate and the dissipating structure."

18 SOUND 6 In NEO WOOFER 260W 63-5500HZ
