NOMINAL SPECIFICATIONS || Nominal Diameter : 160 mm (6 in) || Overall Diameter : 186.5/162 mm (7.34/6.37 in) || Bolt Circle Diameter : 172 mm (6.77 in) || Baffle Cutout Diameter : 147 mm (5.79 in) || Depth : 80 mm (3.15 in) || Flange and Gasket Thickness : 9.5 mm (0.37 in) || Net Weight : 2.2 kg (4.9 lb) || Shipping Box (Single Carton Box) : 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) || Shipping Weight : 2.4 kg (5.3 lb) ||

"TECHNICAL PARAMETERS Nominal Impedance : 8 Ohm || Minimum Impedance : 7 Ohm || AES Power Handling (1) : 150 W || Maximum Power Handling (2) : 300 W || Sensitivity (1W/1m) : 96 dB || Frequency Range : 100÷6000 Hz || Voice Coil Diameter : 37 mm (1.46 in) || Winding Material : Al || Former Material : Kapton || "

"TECHNICAL PARAMETERS Winding Depth : 7.5 mm (0.30 in) || Magnetic Gap Depth : 6 mm (0.24 in) || Flux Density : 1.35 T || Magnet : Ferrite Ring || Basket Material : Aluminum || Demodulation : No || Cone Surround (3) : Half Roll || NET Air Volume filled by Loudspeaker : 0.7 dm^3 (0.025 ft^3) || Spider Profile : 1x constant height waves || "

"THIELE AND SMALL PARAMETERS || Fs : 100 Hz || Re : 6 Ohm || Qes : 0.6 || Qms : 4.2 || Qts : 0.53 || Vas : 5.6 dm^3 (0.20 ft^3) || Sd : 137 cm^2 (21.28 in^2) || Xmax (4) : 2.75 mm || Xdamage (5) : 11.6 mm || Mms : 12.0 g || Bl : 8.5 N/A || Le : 0.22 mH || Mmd : 10.2 g || Cms : 0.20 mm/N || Rms : 1.8 kg/s || Eta Zero : 0.86 % || EBP : 167 Hz || "

"Brand : FAITAL PRO || Model Number : 6PR110-8 | 6PR110 || UPC : 810130951369 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version : 01604091 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage "

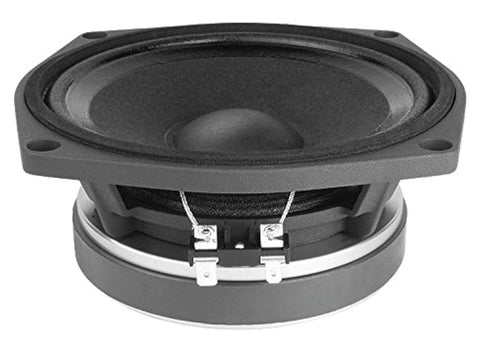

6-in Mid Woofer 300 Watts Max Power 8-Ohms
