"NOMINAL SPECIFICATIONS || Nominal Diameter : 200 mm (8 in) || Overall Diameter : 209.2 mm (8.24 in) || Bolt Circle Diameter : 196.9 mm (7.75 in) || Baffle Cutout Diameter : 178 mm (7.01 in) || Depth : 89 mm (3.50 in) || Flange and Gasket Thickness : 8 mm (0.31 in) || Net Weight : 2.2 kg (4.7 lb) || Shipping Box (Single Carton Box) : 227 x 224 x 113 mm (8.9 x 8.8 x 4.4 in) || Shipping Weight : 3 kg (6.6 lb) || "

TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.8 Ohm || AES Power Handling (1) : 130 W || Maximum Power Handling (2) : 260 W || Sensitivity (1W/1m) : 95 dB || Frequency Range : 60÷5000 Hz || Voice Coil Diameter : 37 mm (1.46 in) || Winding Material : Al || Former Material : Kapton ||

TECHNICAL PARAMETERS || Winding Depth : 12 mm (0.47 in) || Magnetic Gap Depth : 8 mm (0.31 in) || Flux Density : 1 T || Magnet : Ferrite Ring || Basket Material : Steel || Demodulation : No || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 0.6 dm^3 (0.021 ft^3) || Spider Profile : 1x constant height waves ||

THIELE AND SMALL PARAMETERS || Fs : 80 Hz || Re : 5.9 Ohm || Qes : 0.66 || Qms : 13.0 || Qts : 0.63 || Vas : 12 mm (0.47 in) || Sd : 209 cm^2 (32.44 in^2) || Xmax (4) : 4.67 mm || Xdamage (5) : 10.4 mm || Mms : 15.0 g || Bl : 8.2 N/A || Le : 0.44 mH || Mmd : 11.6 g || Cms : 0.26 mm/N || Rms : 0.6 kg/s || Eta Zero : 1.21 % || EBP : 121 Hz ||

Brand : FAITAL PRO || Model Number : 8FE200-8 | 8FE200 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version : 02004018 || UPC : 810130951406 || NOTES: : || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 : || (2) Maximum power is defined as 3dB greater than nominal power. : || (3) Treated Polycotton : || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) : || (5) Maximum excursion before permanent damage : ||

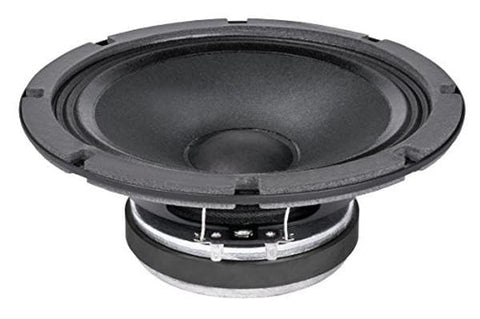

8-in Middle Range Speaker 8-Ohms 260 Watt Max Power Capacity
