NOMINAL SPECIFICATIONS || Nominal Diameter : 200 mm (8 in) || Overall Diameter : 223.7/207.9 mm (8.81/8.18 in) || Bolt Circle Diameter : 210 mm (8.27 in) || Baffle Cutout Diameter : 183 mm (7.20 in) || Depth : 98.5 mm (3.88 in) || Flange and Gasket Thickness : 10.8 mm (0.43 in) || Net Weight : 4.3 kg (9.5 lb) || Shipping Box (Single Carton Box) : 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in) || Shipping Weight : 4.6 kg (10.1 lb) ||

TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.3 Ohm || AES Power Handling (1) : 200 W || Maximum Power Handling (2) : 400 W || Sensitivity (1W/1m) : 97 dB || Frequency Range : 80÷6300 Hz || Voice Coil Diameter : 52 mm (2 in) || Winding Material : Al || Former Material : Glass Fiber ||

TECHNICAL PARAMETERS || Winding Depth : 9.8 mm (0.39 in) || Magnetic Gap Depth : 8 mm (0.31 in) || Flux Density : 1.3 T || Magnet : Ferrite Ring || Basket Material : Aluminum || Demodulation : Aluminum Ring || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 1.06 dm^3 (0.037 ft^3) || Spider Profile : 1x variable height waves ||

THIELE AND SMALL PARAMETERS || Fs : 85 Hz || Re : 5.3 Ohm || Qes : 0.39 || Qms : 8.8 || Qts : 0.37 || Vas : 9.4 dm^3 (0.33 ft^3) || Sd : 217 cm^2 (33.67 in^2) || Xmax (4) : 3.57 mm || Xdamage (5) : 10.65 mm || Mms : 24.5 g || Bl : 13.4 N/A || Le : 0.41 mH || Mmd : 20.9 g || Cms : 0.14 mm/N || Rms : 1.5 kg/s || Eta Zero : 1.45 % || EBP : 218 Hz ||

Brand : FAITAL PRO || Model Number : 8PR155-8 | 8PR155 || UPC : 810130951420 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version : 02004172 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage

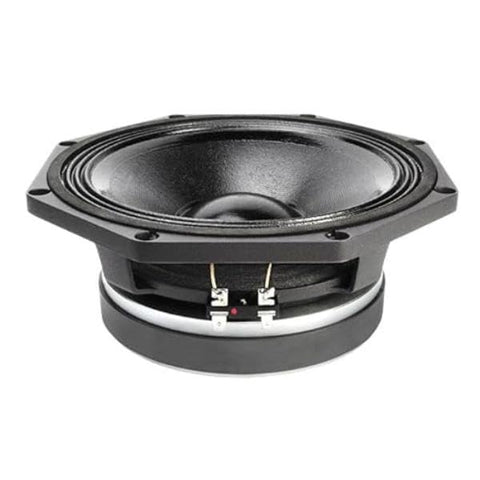

8-in Middle Range Speaker 8-Ohms 400 Watt Maximum Power Capacity
