FEATURES || 107 dB SPL 1W / 1m average sensitivity || 1 inch exit throat || 44 mm (1 3/4 inch) voice coil diameter || 100 Watt program power handling || Titanium dome over PEN suspension || Proprietary phase plug design ||

"SPECIFICATIONS || Throat Diameter :: 25 mm (1.0 in) || Nominal Impedance :: 8 ? || Minimum Impedance :: 6.4 ? || Nominal Power Handling :: 50 W || Continuous Power Handling :: 100 W || Sensitivity :: 107.0 dB || Frequency Range :: 1.6 - 20.0 kHz || Recommended Crossover :: 1.4 kHz || Voice Coil Diameter :: 44 mm (1.75 in) || Winding Material :: Aluminum || Diaphragm Material :: Titanium - Pen || Flux Density :: 1.6 T || Magnet Material :: Ferrite || "

"MOUNTING AND SHIPPING INFO || Overall Diameter :: 110 mm (4.33 in) || Depth :: 60 mm (2.36 in) || Net Weight :: 1.6 kg (3.53 lb) || Shipping Weight :: 1.7 kg (3.75 lb) || Shipping Box :: 110x110x63 mm (4.33x4.33x2.48 in) ||"

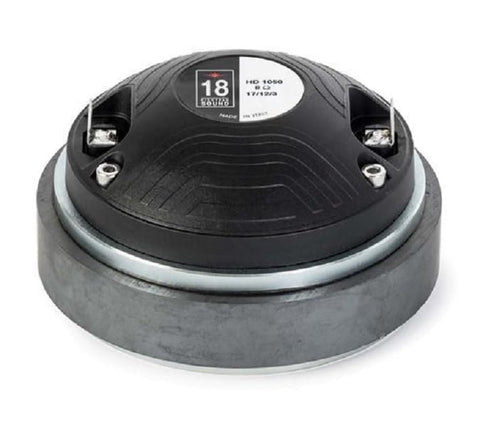

The HD1050 one inch exit high frequency compression driver has been designed for use in high quality audio systems. Equipped with Eighteen Sound proprietary Phase Plug architecture, the HD1050 has been designed to give high level manufacturing consistency and smooth coherent wave front at the horn entrance across the whole working frequency range. The phase plug with its short openings and high flare rate value assures low distortion and demonstrates remarkable improvements

The diaphragm assembly is composed of a titanium dome sandwiched to a proprietary treated polyester suspension unit. It has been designed to maintain low resonance, lowering the minimum crossover point value at 1,4kHz. An edge-wound aluminum voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Thanks to its physical properties, the proprietary treated Nomex former has a 30% higher value of tensile elongation at a working operative temperature (200°C)

HF Compression Driver w/1 inch exit throat 8 Ohms high power
