"NOMINAL SPECIFICATIONS || Throat Diameter : 50.8 mm (2 in) || Overall Diameter : 170 mm (6.69 in) || 90° Mounting Holes Diameter (4xM6) : 102 mm (4.02 in) || Depth : 66 mm (2.60 in) || Net Weight : 4.6 kg (10.2 lb) || Shipping Box (Single carton box) : 195 x 195 x 141 mm (7.7 x 7.7 x 5.6 in) || Shipping Weight : 4.8 kg (10.6 lb) ||

"TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 7.2 Ohm || AES Power above 0.9 kHz (1) : 100 W || AES Power above 0.65 kHz : 50 W || Maximum Power above 0.9 kHz (2) : 200 W || Maximum Power above 0.65 kHz : 100 W || Minimum Crossover Frequency (3) : 0.9 kHz || Sensitivity (1W/1m) (4) : 108 dB || Frequency Range : 0.5÷18 kHz || Voice Coil Diameter : 74 mm (2.91 in) || Winding Material : Al || Former Material : Kapton ||

"TECHNICAL PARAMETERS || Diaphragm Material : Titanium || Diaphragm Shape : Dome || Winding Depth : 2.35 mm (0.09 in) || Magnetic Gap Depth : 3.2 mm (0.13 in) || Flux Density : 1.7 T || Magnet : Ferrite Ring || Re : 5.6 Ohm || Phase Plug Design : Annular || Exit Angle (5) : 36° Conical || NET Air Volume filled by HF Driver : 1.05 dm^3 (0.037 ft^3) ||

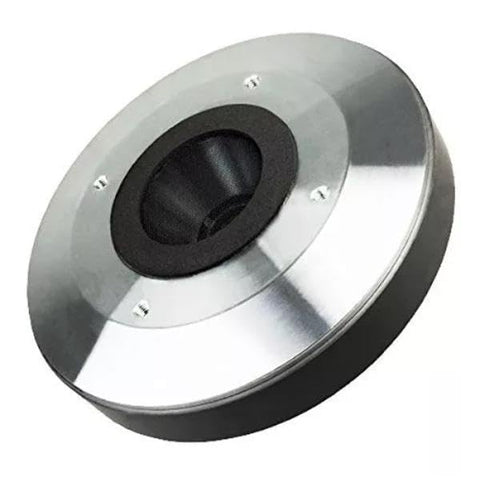

"Brand : FAITAL PRO || Model Number : HF201-8 | HF201 || UPC : 810130951512 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 00744169 || The FAITAL PRO HF201-8 is a high-performance compression driver, ideal for professional audio systems. It features a titanium diaphragm and ferrite magnet, ensuring robust performance and durability. ||

"NOTES || Driver mounted on a 2” 90° x 40° Horn || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) 12 dB/oct or higher slope high-pass filter || (4) Averaged within the frequency range || (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn

2-in Bolt-on High Frequency Driver with Titanium Dome Diaphragm 8-Ohms
