GENERAL || * Brand : 18 SOUND || * Model Number : ND1050-8 | DRV101050TP08NA - ND1050 || * UPC : 8054752262232 | 8054752262256 || FEATURES || 110 dB SPL 1W / 1m average sensitivity || 1 inch exit throat || 44mm (1 3/4 inch) voice coil diameter || 100 Watt program power handling || Neodymium magnet structure || Titanium dome over PEN suspension || Ultra compact size - 75mm external diameter || Proprietary phase plug design || Ideal for multiple HF line arrays ||

SPECIFICATIONS || Throat Diameter : 25 mm (1.0 in) || Nominal Impedance : 8 ? || Minimum Impedance : 6.9 ? || Nominal Power Handling : 50 W || Continuous Power Handling : 100 W || Sensitivity : 110.0 dB || Frequency Range : 1.6 - 20.0 kHz || Recommended Crossover : 1.6 kHz || Voice Coil Diameter : 44 mm (1.75 in) || Winding Material : Aluminum || Diaphragm Material : Titanium - Pen || Flux Density : 1.9 T || Magnet Material : Neodymium ||

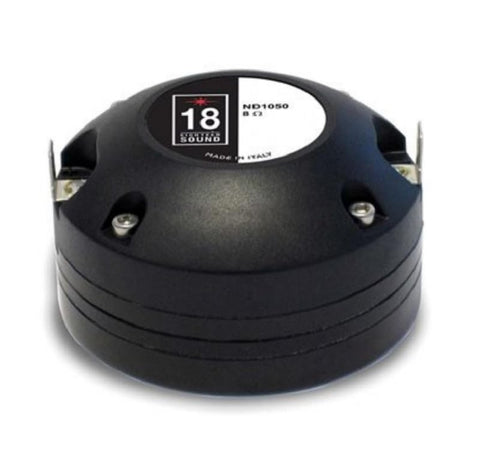

The 18 SOUND ND1050-8 is a high-frequency compression driver that features a 1-inch exit throat and a 44mm (1.75 inch) voice coil. It's designed for high-quality sound applications where size is a critical factor. This driver is known for its 110 dB SPL 1W / 1m average sensitivity and can handle a program power of 100 watts. ||

It has a neodymium magnet structure and a titanium dome over PEN suspension, which contributes to its ability to deliver clear and powerful sound. The ultra-compact size with an external diameter of just 75mm makes it ideal for multiple high-frequency line arrays. The proprietary phase plug design ensures a coherent wavefront at the horn entrance across the working frequency range, leading to low distortion and significant improvements in mid-high frequency reproduction. ||

MOUNTING AND SHIPPING INFO || Overall Diameter : 75 mm ( in) || Depth : 41 mm ( in) || Net Weight : 0.55 kg ( lb) || Shipping Weight : 0.6 kg ( lb) || Shipping Box : 97x97x58 mm (3,8x3,8x2,3 in) mm ( in)

18 SOUND 1 In NEO DRIVER 100W
