GENERAL || * Brand : 18 SOUND || * Model Number : R6NM410BKIT | ALT060410WF08NA - 6NM410 || * UPC : 8054752263598 || The 6NM410 is capable of being used as a mid-range in both horn and direct radiation, closed or reflex enclosures, as small as 2 liters. The speaker features an extremely powerful external neodymium magnet assembly, which assures high flux concentration, low power compression, and excellent heat exchange. ||

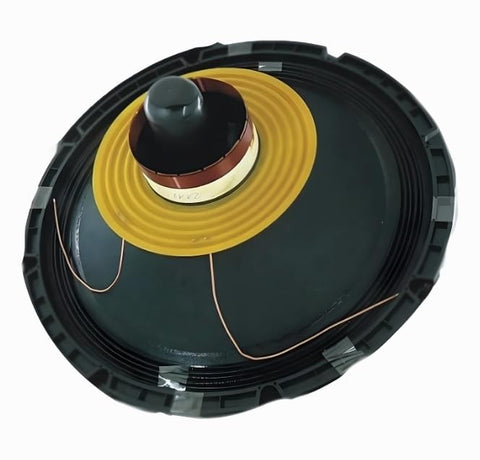

The 18 SOUND R6NM410BKIT is a recone kit designed for the 6NM410 midrange speaker. This kit includes all the necessary parts to repair or rebuild the 6NM410 after damage or long-term wear. || Some details about the 6NM410 speaker which the recone kit is intended for || Size: 6-inch || Power Rating: 180W AES || Frequency Response: 200-8kHz || Sensitivity: 102dB || Impedance: 8 ohms || Voice Coil: 1.75 inches || Resonant Frequency: 120 Hz || Weight: 2.76 lbs ||

Recone kits are designed for repairing or rebuilding a loudspeaker after damage or long-term wear. For a specific recone kit like the 18 SOUND R6NM410BKIT, intended for the 6NM410 model. || SURROUND : The outer ring that supports the edge of the cone, allowing it to move in and out while maintaining concentricity. ||

CONE : A new cone that is the main moving part of the speaker, responsible for pushing air and creating sound. || VOICE COIL : This is attached to the apex of the cone and sits in the magnetic gap of the speaker's motor structure. || SPIDER : A flexible, corrugated support that holds the voice coil in place while allowing it to move back and forth. || ADHESIVES : Specialized glue for securing all the parts together during the reconing process. ||

MOUNTING AND SHIPPING INFO : || Overall Diameter : 162 mm (6.38 in) || Bolt Circle Diameter : 170 mm (6.69 in) || Baffle Cutout Diameter : 148.0 mm (5.83 in) || Depth : 60 mm (2.36 in) || Flange and Gasket Thickness : 9 mm (0.35 in) || Net Weight : 1.25 kg (2.76 lb) || Shipping Weight : 1.35 kg (2.98 lb) || Shipping Box : 185x170x85 mm (7.28x6.69x3.35 in)

18 SOUND RECONE KIT FOR 6NM410
