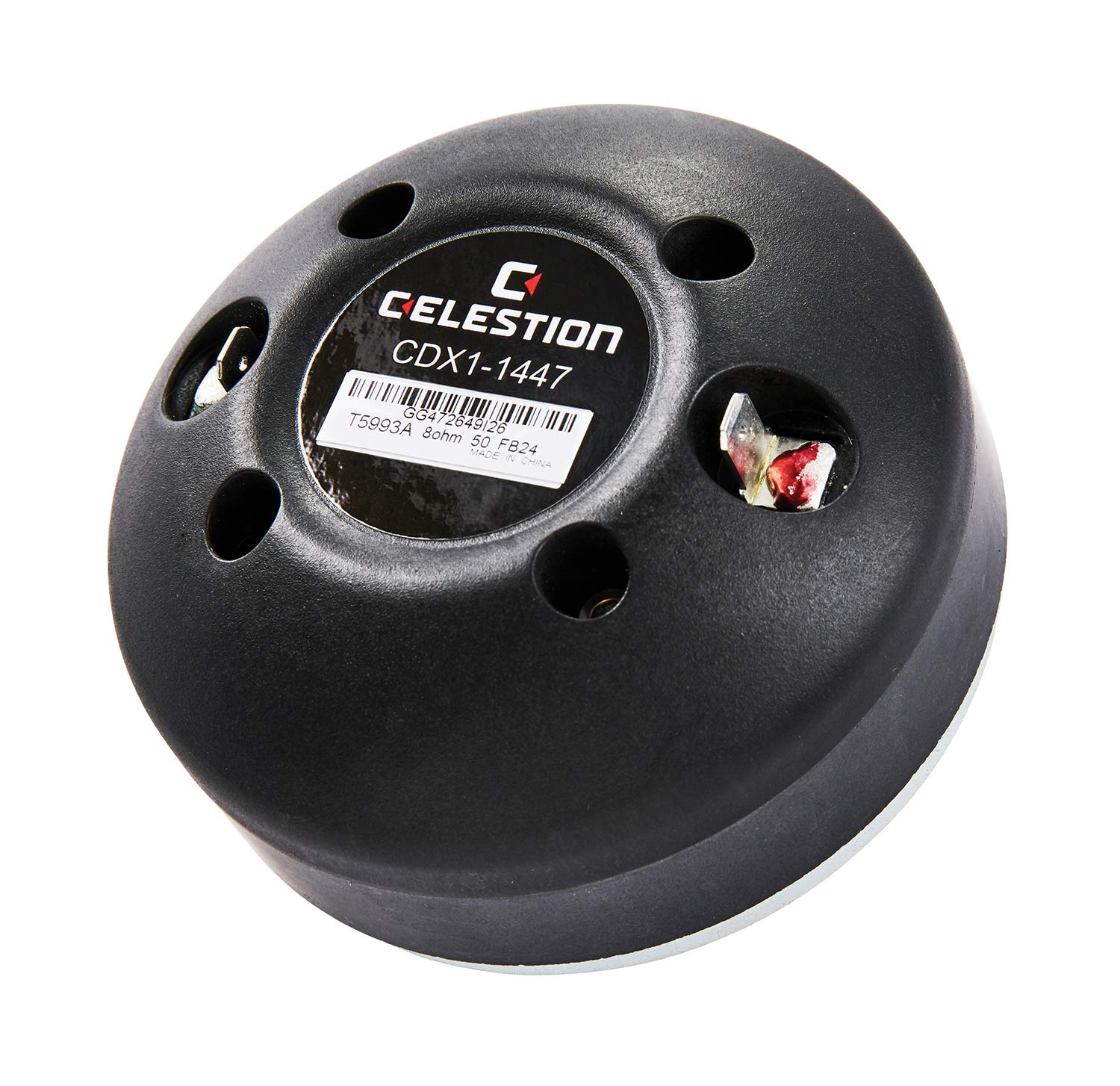

CELESTION CDX1-1447 1 In DRIVER 35W 8 OHM
Liquid error (sections/product-template line 186): Could not find asset snippets/KM-custom-rating.liquid Regular price $65.76 $85.49 | Save $19.73 (23% off)
Estimated shipping between -
Delivery within 2–5 days of shipping (Oct 17–Oct 20)
PRODUCT DETAILS
HIGHLIGHTS | Single piece polyimide diaphragm and surround | Integrated diaphragm and rear cover for ease of replacement | 2,200Hz recommended min. crossover freq (12dB/oct) | Power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance | Continuous power rating: Defined as 3dB greater than the AES rating | Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2? anechoic environment
SPECIFICATIONS | Power rating : 35W | Continuous power rating : 70W | Rated impedance : 8? | Sensitivity : 106dB | Frequency range : 1500-20,000Hz | Recommended min. crossover : (12dB/oct) 2200Hz | Magnet type : Ferrite | Voice coil diameter : 35mm / 1.4in | Voice coil material : Copper clad aluminium | Diaphragm material : Polyimide | Surround material : Polyimide |
MOUNTING INFORMATION | Width : 46.5mm / 1.8in | Depth : Bolt (4 x M6 holes on 76mm/3in PCD) | Fitting : 25mm / 1in | Throat exit : 1.0kg / 2.2lb | Unit weight : |
PACKED DIMENSIONS & WEIGHT Single pack size W x D x H : 110mm x 98mm x 81mm / 4.3in x 3.9in x 3.2in | Single pack weight : 1.5kg / 3.3lb | Multi pack qty : 16 | Multi pack size W x D x H : 495mm x 495mm x 90mm / 19.5in x 19.5in x 3.5in | Multi pack weight : 17kg / 37.4lb |
HORNS AND REPAIR KITS T6525 : Diaphragm repair kit (8?) | T5359 : H1-9040P Horn | T5134 : H1-7050 'No Bell' Horn |
