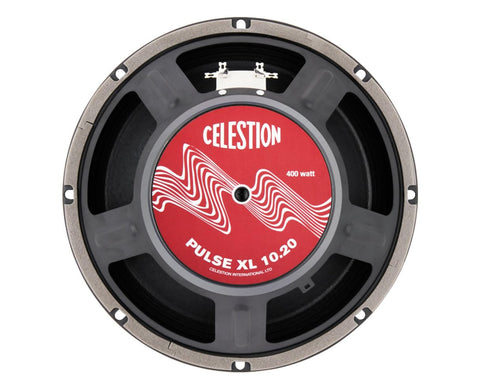

GENERAL || Brand : CELESTION || Model Number : T6654 | PULSE XL 10.20 | PulseXL10 || UPC : 739894665452 || Great by itself and even better in a 4×10, the PULSE XL 10.20 provides more bass than you’d ever imagine from a 10-inch speaker, along with the speed of response that makes small diameter drivers so popular with bass players that want to cut through the mix. A fabric dust dome contributes to a particularly articulate treble response. ||

Celestion Pulse XL 10.20 Bass Speaker Features : 10-inch steel-chassis bass guitar speaker || Churns out a surprising amount of low end for a small-diameter driver || Responsive design ensures mix-penetrating clarity || Hard felt dust cap smooths out excessive cone distortion for an articulate treble response || Multi-roll surround allows for generous cone excursion at higher output levels || Heat-resistant polyimide former supplies outstanding power handling ||

Specifications || Nominal diameter : 254mm / 10in || Power rating : 400W || Rated impedance : 8? || Sensitivity : 92dB || Magnet type : Ferrite || Voice coil diameter : 2in / 50mm || Voice coil material : Copper || Former material : Polyimide || Cone material : Cellulose || Surround material : Triple roll, cloth sealed || Frequency range : 40-2200Hz || Gap height (Hg) : 8mm / 0.3in || VC winding height (Hvc) : 20.5mm / 0.8in ||

Parameters || Sd : 346.4cm2 / 53.69in2 || Fs : 37.5Hz || Mms : 39.8g / 1.4oz || Qms : 6.678 || Qes : 0.493 || Qts : 0.459 || Re : 5.8? || Vas : 76.92l / 2.7ft3 || BI : 10.51Tm || Cms : 0.453mm/N || Rms : 1.4kg/s || Le (at 1kHz) : 1.2mH || Xmax : 8.25mm / 0.32in ||

Mounting Information || Cut-out diameter : 233.2mm / 9.18in || Diameter : 256mm / 10.1in || Mounting hole dimensions : 6.4mm / 0.25in Ø || Mounting hole PCD : 245.4mm / 9.66in || Number of mounting holes : 8 || Chassis depth (inc gasket) : 79mm / 9.33in || Magnet depth : 36mm / 1.42in || Overall depth : 108mm / 4.25in || Unit weight : 4kg / 8.8lb

CELESTION PULSEXL 10.20 T6654
