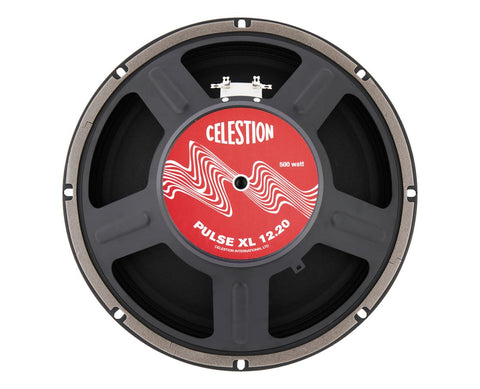

GENERAL || Brand : CELESTION || Model Number : T6655 | PULSEXL 12.20 | PulseXL12 || UPC : 739894665551 || An increasingly popular choice of speaker format for bass players, this 12-inch driver delivers a rock-solid performance with plenty of warmth and richness in the low end, a detailed and expressive mid-band and a super-smooth treble, courtesy of a felt dust dome. Expect plenty of punch from singles or pairs, or a wall of classic bass tone in 4×12 configurations. ||

SPECIFICATIONS || Nominal diameter : 305mm / 12in || Power rating : 500W || Rated impedance : 8? || Sensitivity : 94dB || Magnet type : Ferrite || Voice coil diameter : 2in / 50mm || Voice coil material : Copper || Former material : Polyimide || Cone material : Cellulose || Surround material : Triple roll, cloth sealed || Frequency range : 35-2200Hz || Gap height (Hg) : 8mm / 0.31in || VC winding height (Hvc) : 20.5mm / 0.8in ||

PARAMETERS || Sd : 530.9cm2 / 82.29in2 || Fs : 35.1Hz || Mms : 53.55g / 1.88oz || Qms : 6.087 || Qes : 0.548 || Qts : 0.503 || Re : 5.8? || Vas : 153.3l / 5.4ft3 || BI : 11.21Tm || Cms : 0.384mm/N || Rms : 1.939kg/s || Le (at 1kHz) : 0.31mH || Xmax : 8.25mm / 0.32" ||

MOUNTING INFORMATION || Cut-out diameter : 281.4mm / 11.08in || Diameter : 311.4mm / 12.26in || Mounting hole dimensions : 6.4mm / 0.25in Ø || Mounting hole PCD : 297.5mm / 11.7in || Number of mounting holes : 8 || Chassis depth (inc gasket) : 91mm / 10.74in || Magnet depth : 36mm / 1.42in || Overall depth : 135mm / 5.3in || Unit weight : 4.1kg / 9lb ||

Celestion Pulse XL 12.20 Bass Speaker Features : 12-inch steel-chassis bass guitar speaker || Delivers rock-solid performance with truckloads of rich, warm low end || Responsive design ensures mix-penetrating clarity || Hard felt dust cap smooths out excessive cone distortion for an articulate treble response || Multi-roll surround allows for generous cone excursion at higher output levels || Heat-resistant polyimide former supplies outstanding power handling ||

CELESTION PULSEXL 12.20 T6655 12 In 500W
